The N-8000 Series IP Network Intercom offers flexible communications for up to 1280 stations on existing corporate local and wide area data networks. Built on TOA's proven network audio technology, the new IP Intercom products occupy minimal network bandwidth (130 kbps maximum) for station-to-station calls and can be controlled and monitored through software or web browser. Programmable system functions include 160 paging zones, time-based call forwarding and scan monitoring. |
Two-wire stations include The N-8000MS Multifunctional Master Station, equipped with a 32 character alphanumeric LCD display, handset and speed dial functions; the N-8010MS Standard Master Station with keypad and handset; the N-8020MS Industrial Master Station, built to withstand severe environmental conditions; and the N-8011MS Hands-Free Master Station offering hands-free simultaneous two-way (duplex) communication via an innovative ambient noise sensing function.
Scalable network communications for up to 1280 stations over data networks (LAN/WAN) Flexible configuration options for existing cabling and network infrastructure.
Station Options:
IP Stations with Ethernet port connect directly to the network (up to 80 stations)
Connect up to sixteen two-wire stations to compact Network Exchange (up to 80 exchanges for up to 1,280 stations)
Occupies minimal network bandwidth 130 kbps max. (station to station call)
Hands-free full-duplex conversation (Not including N-8540DS or Q-N8540WP which offer Half-Duplex conversation)
Control and monitor through software and web browser
Versatile features including 160 zone paging, time-based call forwarding and scan monitoring
|
| |
| Download the N-8000 system brochure |
| |
| See an example installation for the N-8000 intercom system |
| |

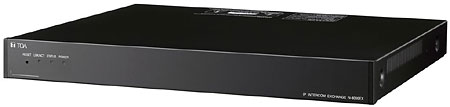

N-8000EX Exchange Unit |
| The backbone of the new system is the compact N-8000EX Exchange which supports 16 stations and occupies only one rack space. Features include a 10/100BaseT port for connection to standard network hardware and two paging audio outputs. Larger systems can be easily configured with up to 80 exchanges and 1,280 stations. |
|
- 10/100BaseTX Ethernet network connection
- Occupies one network node ( 80 max.)
- Sixteen (16) station capacity
- Stations connect to exchange via two-wire twisted pair
- Provides 48 VDC to each station
- Speech links: 4 internal / 8 external
- Two (2) audio paging outputs (0 dBV)
- Two (2) relay outputs
- Includes rack-mount and wall-mount brackets
|
| |
| |
N-8010EX Exchange Unit |
| The economy N-8010EX IP Intercom Exchange, featuring one speech link, is available as a lower-cost alternative to the four-link N-8000EX IP Intercom Exchange. |
|
- 10/100BaseTX Ethernet network connection
- Occupies one network node ( 80 max.)
- Sixteen (16) station capacity
- Stations connect to exchange via two-wire twisted pair
- Provides 48 VDC to each station
- Speech links: 1 internal / 2 external
- Includes rack-mount and wall-mount brackets
|
| |

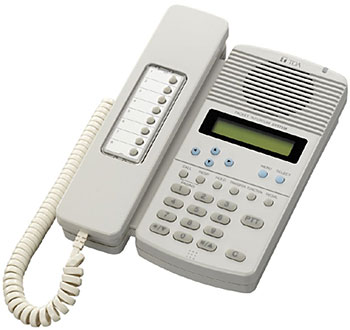

N-8000MS Multifunction Master Station |
| |
|
 |
- Full-Duplex (aka: Duplex) communication is supported by this station
- Two-wire connection to N-8000EX or N-8010EX Exchange
- Alphanumeric LCD display (32 character)
- Handset or hands-free duplex communication
- Eight user-programmable speed dial keys
- Headset terminal
- External speaker terminal (0.6 W / 8 ohms)
- Optional wall-mount bracket, model YC-280
|
| |

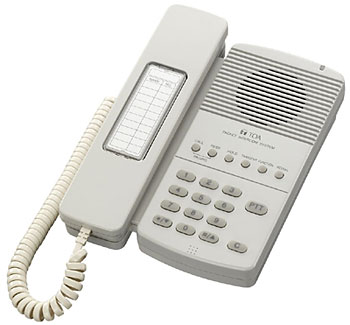

N-8010MS Standard Master Station |
| |
|
 |
- Full-Duplex (aka: Duplex) communication is supported by this station
- Two-wire connection to N-8000EX or N-8010EX Exchange
- Handset or hands-free duplex communication
- Optional wall-mount bracket, model YC-280
|
| |
N-8011MS Handsfree Master Station |
| |
|
|
- Full-Duplex (aka: Duplex) communication is supported by this station
- Two-wire connection to N-8000EX or N-8010EX Exchange
- Hands-free duplex communication
- Optional wall-mount bracket, model YC-290
|
| |
N-8050MS Indoor Sub Station |
| |
|
|
- Full-Duplex (aka: Duplex) communication is supported by this station
- Two-wire connection to N-8000EX or N-8010EX Exchange
- Hands-free duplex communication
- Separate mic and speaker
- Control output (open collector)
- IP54 rated
- Optional flush-mount back-box, model YC-150
- Optional surface-mount back-box, model YS-13A
- Also available as PCB assy., model N-8050SB
|
| |

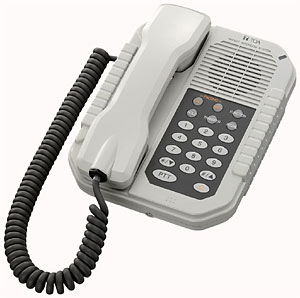

N-8020MS Industrial Master Station |
|
- Full-Duplex (aka: Duplex) communication is supported by this station
- Heavy duty dustproof and waterproof construction (IP54 rating)
- Two-wire connection to N-8000EX or N-8010EX Exchange
- Handset or hands-free duplex communication
- External speaker terminal (0.6 W / 8 ohms)
- Control output
- Optional wall-mount bracket, model YC-280
|
| |
| The above intercom stations all connect back to the exchange units by two wires. The exchange units are linked via IP addresses on a computer network. The following intercom stations require no exchange unit to operate as they connect directly to a network and communicate directly to each other via programmed IP addresses. |
| |

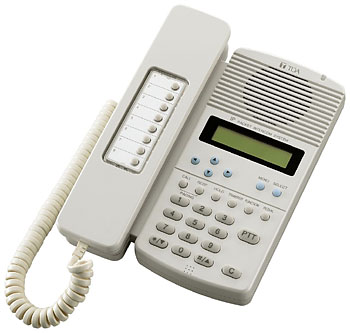

N-8500MS IP Master Station |
 |
- Full-Duplex (aka: Duplex) communication is supported by this station using the handset operation
- Half-Duplex (aka: Simplex) communication is supported by this station using the Hands-Free operation
- Connects directly to network (10/100Base TX)
- Occupies one network node ( 80 max.)
- Power-over-Ethernet compatible or optional power supply, model AD-1210P
- Two RJ-45 network connectors (one for network, one for PC)
- Alphanumeric LCD display (32 character)
- Handset or hands-free duplex communication
- Eight user-programmable speed dial keys
- Headset terminal
- External speaker terminal (0.6 W / 8 ohms)
- Optional wall-mount bracket, model YC-280
|
| |
N-8540DS IP Sub Station |
|
- Half-Duplex (aka: Simplex) communication is supported by this station
- Connects directly to network (10/100Base TX)
- Occupies one network node (80 max.)
- Power-over-Ethernet compatible or optional power supply, model AD-1210P
- Hands-free duplex communication
- Separate mic and speaker
- Control output (open collector)
- IP54 rated
- Optional flush-mount back-box, model YC-150
- Optional surface-mount back-box, model YS-13A
|
| |
